SZ-75W-PQ
 SZ POWER TECHNOLOGY CO.,LTDwww.szpowertechnology.com |
|||||

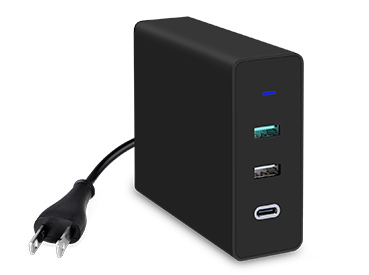

| FEATURES | CERTIFICATIONS | PRODUCT IMAGE | |||
|
※ 75W OUTPUT POWER ※ 3A MAX FAST SPEED CHARGING ※ OVERCURRENT PROTECTION ※ SHORT CIRCUIT PROTECTION ※ INPUT PROTECTION ※ LEVEL VI |
※ UL ※ CE ※ FCC ※ CB ※ LEVEL VI |
 |
|||
| TYPICAL MODEL LIST | |||||
| I/P VOLTAGE | MODEL | TYPE-C PORT 1 | USB QC3.0 PORT 2 | USB PORT 3 | EFFICIENCY |
|
90V-264A AC 47-63Hz |
SZ-75W-PQ |
5V/3A 9V/3A 12V/3A 15V/3A 20V/2.25A |
3.6-6.5/3A 6.5-9V/2A 9-12V/1.5A |
5V/2.4A | DOE-VI & CoC V II |
| OUTPUT SPECIFICATIONS | ENVIRONMENTAL SPECIFICATIONS | ||||
| OUTPUT POWER | 75W | OPERATING TEMP. | 0℃~ 25℃ | ||
| STANDBY POWER | ＜0.15W | COOLING | CONVECTION | ||
| LEAKAGE CURRENT |
＜0.25mA (230Vac/50Hz) |
TEMP. COEFFICIENT | 0.05%/°C | ||
| RIPPLE & BOISE | V x 2%mVp-p @ 25 °C | HUMIDITY |
0%~95% (non-condensing) |
||
| START UP TIME | ＜2S | STORAGE TEMP. | -25℃~ +55℃ | ||
| LINE REGULATION | V±2.0% | ||||
| OUTPUT REGULATION | ±5% | ||||
| PROTECTIONS | Over voltage protection,Short circuit protection,Over current protection,Thermal protection | ||||
| SAFETY STANDARDS |
UL: UL60950,UL1310 UL: FCC UL: CEC VI / CoC V II CSA: EEV/NRcan |
||||
