SZ-30W-PQ-W

SZ POWER TECHNOLOGY CO.,LTD
www.szpowertechnology.com

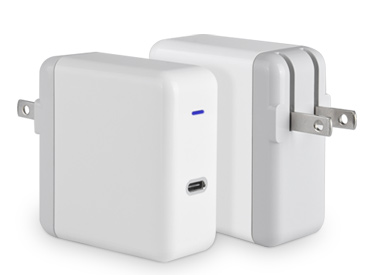

FEATURES CERTIFICATIONS PRODUCT IMAGE
30W OUTPUT POWER
3A MAX FAST SPEED CHARGING
OVERCURRENT PROTECTION
SHORT CIRCUIT PROTECTION
INPUT PROTECTION
LEVEL VI
UL
CE
FCC
CB
LEVEL VI

TYPICAL MODEL LIST
I/P VOLTAGE MODEL OUTPUT PORT STYLE EFFICIENCY
90V-264A AC
47-63Hz
SZ-30W-PQ-W PD:5V/3A,9V/3A,12V/2.5A,15V/2A,20V/1.5A
QC3.0:3.6-6.5/3A,6.5-9V/2A,9-12V/1.5A
OR 5V/2.4A
TYPE-C PORT DOE-VI & CoC V II
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
OUTPUT POWER 30W OPERATING TEMP. 0~ 25
STANDBY POWER 0.075W COOLING CONVECTION
LEAKAGE CURRENT 0.25mA
(230Vac/50Hz)
TEMP. COEFFICIENT 0.05%/°C
RIPPLE & BOISE V x 2%mVp-p @ 25 °C HUMIDITY 0%~95%
(non-condensing)
START UP TIME 2S STORAGE TEMP. -25~ +55
LINE REGULATION V±2.0%
OUTPUT REGULATION ±5%
PROTECTIONS Over voltage protection,Short circuit protection,Over current protection,Thermal protection
SAFETY STANDARDS UL: UL60950-1,2nd Edition, 2014-10-14; CAN/CSA C22.2 No.60950-1-07,2ND Edition, 2014-10
FCC: CFR 47, FCC Part 15 Subpart B; ANSI C63.4-2014
CEC VI / CoC V II: EN50563:2011+A1:2013, EN50564:2011
CE: EN55032:2015+AC: 2016; EN61000-3-2:2014, EN61000-3-3:2013; EN55024:2010+A1:2015;
IEC61000-4-2:2008, IEC61000-4-3:2016+A1:2007+A2:2010, IEC61000-4-4:2012,
IEC61000-4-5:2014, IEC61000-4-6:2013, IEC61000-4-11:2004;
EN60950-1:2006/A2:2013
CB: EN60950-1
PRODUCT DIMENSIONS
