SZ-30W-Q-W (Exchangeable)
 SZ POWER TECHNOLOGY CO.,LTDwww.szpowertechnology.com |
|||||

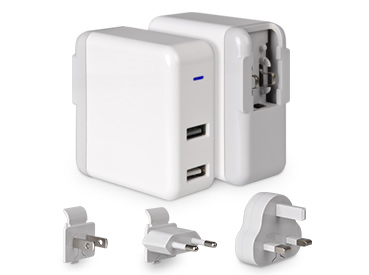

| FEATURES | CERTIFICATIONS | PRODUCT IMAGE | |||
|
※ 30W OUTPUT POWER ※ QC3.0 FAST SPEED CHARGING ※ OVERCURRENT PROTECTION ※ SHORT CIRCUIT PROTECTION ※ INPUT PROTECTION |
※ UL ※ CE ※ FCC ※ CB ※ LEVEL VI |
 |
|||
| TYPICAL MODEL LIST | |||||
| I/PVOLTAGE | MODEL | USB PORT 1 | USB PORT 2 | EFFICIENCY | |
|
90V-264AAC 47-63Hz |
SZ-30W-Q-W |
QC3.0:3.6-6.5/3A,6.5-9V/2A,9-12V/1.5A |
5V 2.4A | DOE & CoC V | |
| OUTPUT SPECIFICATIONS | ENVIRONMENTAL SPECIFICATIONS | ||||
| OUTPUT POWER | 30W | OPERATING TEMP. | 0℃~ 25℃ | ||
| STANDBY POWER | ＜0.075W | COOLING | CONVECTION | ||
| LEAKAGE CURRENT |
＜0.25mA (230Vac/50Hz) |
TEMP. COEFFICIENT | 0.05%/°C | ||
| RIPPLE & BOISE | V x 2%mVp-p @ 25°C | HUMIDITY |
0%~95% (non-condensing) |
||
| START UP TIME | ＜2S | STORAGE TEMP. | -25℃~ +55℃ | ||
| LINE REGULATION | V±2.0% | ||||
| OUTPUT REGULATION | ±5% | ||||
| PROTECTIONS | Over voltage protection,Short circuit protection,Over current protection,Thermal protection | ||||
| SAFETY STANDARDS |
UL: UL60950,UL1310 UL: FCC UL: CEC V / CoC V CSA: EEV/NRcan |
||||

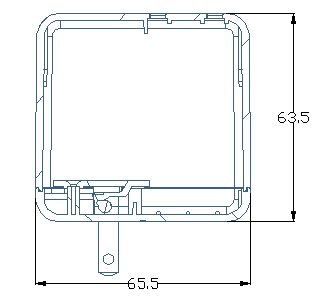

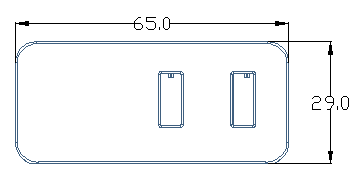

| PRODUCT DIMENSIONS | |||||

|
|||||
