SZ-45W-PQ (Exchangeable)
SZ POWER TECHNOLOGY CO.,LTD www.szpowertechnology.com |
|||||

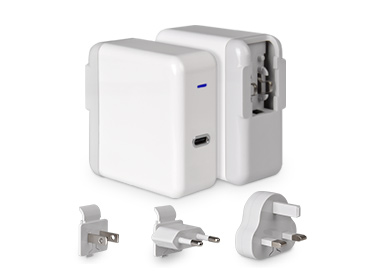

FEATURES | CERTIFICATIONS | PRODUCT IMAGE | |||
※ 45W OUTPUT POWER ※ 3A MAX FAST SPEED CHARGING ※ OVERCURRENT PROTECTION ※ SHORT CIRCUIT PROTECTION ※ INPUT PROTECTION ※ LEVEL VI |
※ UL ※ CE ※ FCC ※ CB ※ LEVEL VI |
|
|||
TYPICAL MODEL LIST | |||||
I/P VOLTAGE | MODEL | OUTPUT | PORT STYLE | EFFICIENCY | |
90V-264A AC 47-63Hz |
SZ-45W-PQ |
PD:5V/3A,9V/3A,12V/3A,15V/3A,20V/2.25A QC3.0:3.6-6.5/3A,6.5-9V/2A,9-12V/1.5A OR 5V/2.4A |
TYPE-C PORT | DOE-VI & CoC V II | |
OUTPUT SPECIFICATIONS | ENVIRONMENTAL SPECIFICATIONS | ||||
OUTPUT POWER | 45W | OPERATING TEMP. | 0℃~ 25℃ | ||
STANDBY POWER | <0.075W | COOLING | CONVECTION | ||
LEAKAGE CURRENT |
<0.25mA (230Vac/50Hz) |
TEMP. COEFFICIENT | 0.05%/°C | ||
RIPPLE & BOISE | V x 2%mVp-p @ 25 °C | HUMIDITY |
0%~95% (non-condensing) |
||
START UP TIME | <2S | STORAGE TEMP. | -25℃~ +55℃ | ||
LINE REGULATION | V±2.0% | ||||
OUTPUT REGULATION | ±5% | ||||
PROTECTIONS | Over voltage protection,Short circuit protection,Over current protection,Thermal protection | ||||
SAFETY STANDARDS |
UL: UL60950-1,2nd Edition, 2014-10-14; CAN/CSA C22.2 No.60950-1-07,2ND Edition, 2014-10 FCC: CFR 47, FCC Part 15 Subpart B; ANSI C63.4-2014 CEC VI / CoC V II: EN50563:2011+A1:2013, EN50564:2011 CE: EN55032:2015+AC: 2016; EN61000-3-2:2014, EN61000-3-3:2013; EN55024:2010+A1:2015; IEC61000-4-2:2008, IEC61000-4-3:2016+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2014, IEC61000-4-6:2013, IEC61000-4-11:2004; EN60950-1:2006/A2:2013 CB: EN60950-1 |
||||

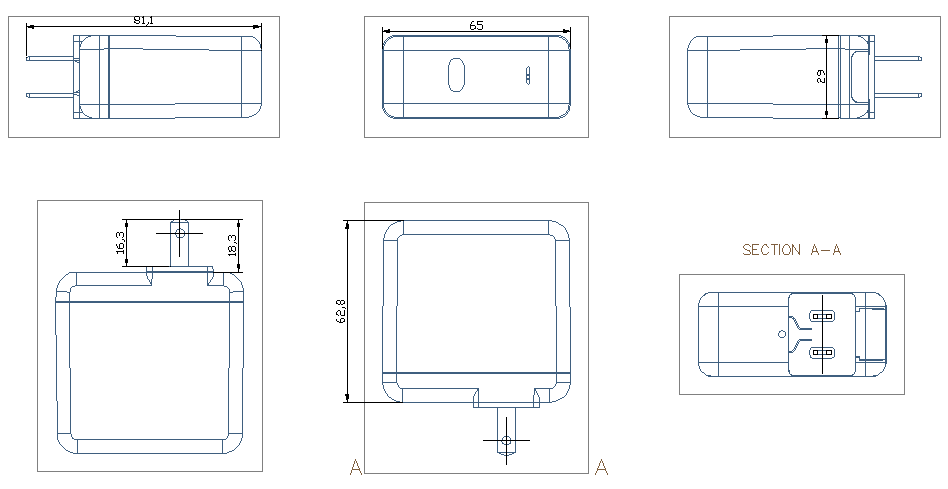

PRODUCT DIMENSIONS | |||||
